Navigational Aids Products

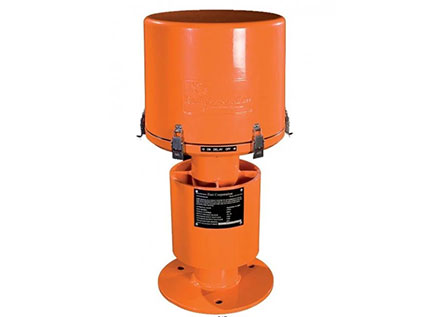

Fog Signals
Essi-patented FaradicWave omni-directional fog signals are durable, efficient and solid. With 0.5 to 2 nautical miles (audible equivalent) capacity, FaradicWave fog signals emit a 360-degree beam of sound in the horizontal plane. Requiring no heavy lifting equipment, they are also easy to install and maintain.
APPLICATION
DESIGN

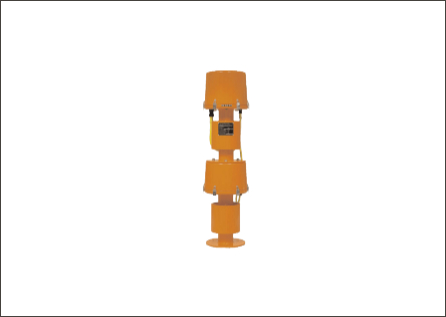

- FaradicWave (FW/6) Fog Signal
- FaradicWave (FW/3) Fog Signal
- FaradicWave (FW/1) Fog Signal

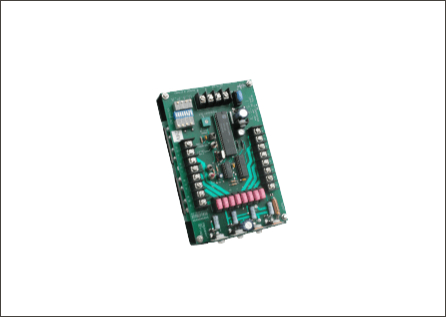

- Universal Acoustic Power Amplifer (UAPA)

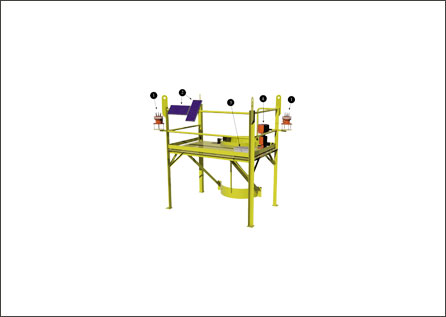

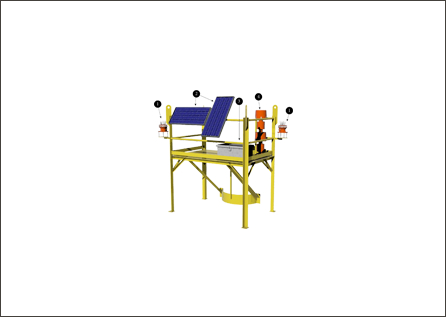

- 8 x 6 Clamp-On Deck
- 8 x 6 Clamp-On Deck

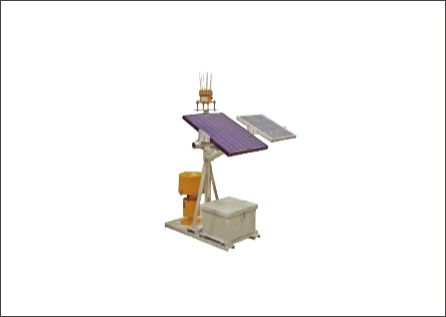

- LED Telescopic Skid Assembled
- LED Telescopic Skid Assembled
- Smart Field Monitoring
CLASS A
2NM
A very durable two nautical mile (audible equivalent) omni-directional fog signal emitting a 360-degree beam of sound in the horizontal plane.
CLASS B
.05 NM
A very durable one half (0.5) nautical mil (audible equivalent) omni-directional fog signal emitting a 360 degree beam of sound in the horizontal plane.
CLASS B
.05 NM
A very durable and reliable one half (0.5) nautical mile (audible equivalent) omni-directional fog signal emitting a 360-degree beam of sound in the horizontal plane.
UAPA
.05 NM
A very durable one half (0.5) nautical mil (audible equivalent) omni-directional fog signal emitting a 360 degree beam of sound in the horizontal plane.
CLASS A
The Class A Single Lift Aluminum Skid is a heavy duty self-contained aids to navigation package powered by batteries and recharged by solar panels. The skid is designed for small fixed structures where deck space is critical and meets the audible and visual requirements of the Class A zone as defined by the United States Coast Guard 8th District Gulf Of Mexico (GOM).
CLASS B
Similar to the Class A Single Lift Aluminum Skid, this Class B self-contained skid is factory assembled with six (6) major components suited for Class B applications.
1. FaradicWave (FW/3) Fog Signal
2. BrightStar Class B (3nm) LED Marine Lantern
CLASS A
The Class A Single Lift Aluminum Skid is a heavy duty self-contained aids to navigation package powered States Coast Guard 8th District Gulf Of Mexico (GOM).
1. FaradicWave (FW/6) Fog Signal
2. BrightStar Class A (5nm) LED Marine Lantern
CLASS B
Similar to the Class A Single Lift Aluminum Skid, this Class B self-contained skid is factory assembled with six (6) major components suited for Class B applications.
1. FaradicWave (FW/3) Fog Signal
2. BrightStar Class B (3nm) LED Marine Lantern
Minimizing the need for dedicated personnel to physically inspect remote devices, Smart Field monitoring reduces your overall cost, exposure and liability.
Through alerts sent via email, text or voice, our customers are
Marine Lanterns
Eliminate “low spots” of light intensity and increase visibility with Essi’s marine lanterns. Fit for marking artificial island and fixed structures, offshore oil and gas structures, drilling rigs, barges, buoys, channels, bridges and docks and suited for both Class A and B applications, our lanterns deliver brightness and intensity of up to ten nautical miles in range.
APPLICATION
DESIGN
- Brightstar LED Marine Lantern with PDA
- Brightstar LED Marine Lantern
- M550 Private Aid to Navigation and Marine Lantern
- M650H LED Marine Lantern
- M850 LED Marine Lantern
- M860 LED Marine Lantern
- 8 x 6 Clamp-On Deck
- 8 x 6 Clamp-On Deck
- LED Telescopic Skid Assembled
- The Class A Single Lift Aluminum
- Smart Field Monitoring
3NM-5NM
The BrightStar LED Marine Lantern is a versatile lantern suited for United States Coast Guard (USCG) approved Class A (5nm) and Class B (3 nm) visibility range with a simple programmer adjustment of the light intensity measured in candela.
The PDA reader provides onsite data and the unit is also compatible with the Essi Corp Smart Field remote monitoring to access operational status including outages, low voltage, faults and malfunctions via secure web portal
10 NM
The BrightStar (10nm) Marine Lantern is a high intensity LED lantern, characterized with higher performance compared to any other LED and incandescent lanterns on the market. It has a high luminous intensity and is mechanically robust, making it the ideal lantern for all difficult sites exposed to weather, wind and vibrations.
UP TO 3NM
The compact and versatile M550 is up to 15 times brighter than its popular M502 predecessor and is available in two easy-mount designs for quick installation at ports, marinas, private docks and more. The unit operates on three easily-replaceable, high-performance AA batteries. Product life expectancy is over fifteen years with three-year warranty.
UP TO 4 NM
The M650 offers up to 60 cd IALA peak intensity within a compact, lightweight yet durable design. With intelligent energy management systems and an intuitive on-board user interface, the M650H provides a practical solution for marinas, docks, barges, bridges, and more.
UP TO 7NM
This high-effciency, compact lantern is suitable for use in most solar locations. The M850 is over 30% more effcient than previous generation lanterns and is capable of an average 3 to 6 NM range with the ability to reach over 7 NM. Multiple battery pack options (60 or 96 Wh) provide customers the ability to cost-optimize their purchase by selecting the best solution for their installation location.
UP TO 10NM
The new M860 LED Marine Lantern is a premium, full-featured lantern suitable for achieving longer ranges in challenging insolation locations. The lantern includes options for GPS synchronization and more. The M860 can achieve up to 475 peak candela (white). Average range is 3 to 6 NM with the ability to reach up to 10 NM.
CLASS A
The Class A Single Lift Aluminum Skid is a heavy duty self-contained aids to navigation package powered by batteries and recharged by solar panels. The skid is designed for small fixed structures where deck space is critical and meets the audible and visual requirements of the Class A zone as defined by the United States Coast Guard 8th District Gulf Of Mexico (GOM).
1. FaradicWave (FW/6) Fog Signal
2. BrightStar Class A (5nm) LED Marine Lantern
3. Heavy Duty Aluminum Skid
4. Galvanic Rechargeable Energy Cells (Batteries)
5. Radiance Solar Energy Generators (Solar Panels)
6. Heavy Duty Battery Box
The Essi Model Galvanic Rechargeable Energy Cells are sized for thirty (30) day autonomy as required by the USCG 8th District for unmanned structures. The Essi Model Radiance Solar Energy Generators are sized with consideration given to solar data from the Gulf of Mexico area.
CLASS B
Similar to the Class A Single Lift Aluminum Skid, this Class B self-contained skid is factory assembled with six (6) major components suited for Class B applications.
1. FaradicWave (FW/3) Fog Signal
2. BrightStar Class B (3nm) LED Marine Lantern
3. Heavy Duty Aluminum Skid
4. Galvanic Rechargeable Energy Cells (Batteries)
5. Radiance Solar Energy Generators (Solar Panels)
6. Heavy Duty Battery Box
The Essi Model Galvanic Rechargeable Energy Cells are sized for thirty (30) day autonomy as required by the USCG 8th District for unmanned structures. The Essi Model Radiance Solar Energy Generators are sized with consideration given to solar data from the Gulf of Mexico area.
The skid is designed for small fixed structures where deck space is critical and meets the audible and visual requirements of the Class B zone as defined by the United States Coast Guard 8th District Gulf Of Mexico (GOM).
CLASS A
The Class A Single Lift Aluminum Skid is a heavy duty self-contained aids to navigation package powered States Coast Guard 8th District Gulf Of Mexico (GOM).
1. FaradicWave (FW/6) Fog Signal
2. BrightStar Class A (5nm) LED Marine Lantern
3. Heavy Duty Aluminum Skid
4. Galvanic Rechargeable Energy Cells (Batteries)
5. Radiance Solar Energy Generators (Solar Panels)
6. Heavy Duty Battery Box
The Essi Model Galvanic Rechargeable Energy Cells are sized for thirty (30) day autonomy as required by the USCG 8th District for unmanned structures. The Essi Model Radiance Solar Energy Generators are sized with consideration given to solar data from the Gulf of Mexico area.
CLASS B
Similar to the Class A Single Lift Aluminum Skid, this Class B self-contained skid is factory assembled with six (6) major components suited for Class B applications.
1. FaradicWave (FW/3) Fog Signal
2. BrightStar Class B (3nm) LED Marine Lantern
3. Heavy Duty Aluminum Skid
4. Galvanic Rechargeable Energy Cells (Batteries)
5. Radiance Solar Energy Generators (Solar Panels)
6. Heavy Duty Battery Box
The Essi Model Galvanic Rechargeable Energy Cells are sized for thirty (30) day autonomy as required by the USCG 8th District for unmanned structures. The Essi Model Radiance Solar Energy Generators are sized with consideration given to solar data from the Gulf of Mexico area.
The skid is designed for small fixed structures where deck space is critical and meets the audible and visual requirements of the Class B zone as defined by the United States Coast Guard 8th District Gulf Of Mexico (GOM).
Minimizing the need for dedicated personnel to physically inspect remote devices, Smart Field monitoring reduces your overall cost, exposure and liability.
Through alerts sent via email, text or voice, our customers are immediately aware of any device outage, low voltage, fault, malfunction or incident of non-compliance.
Monitored data includes:
- Battery voltage
- Lantern Operational Status (on/off state)
- Fog signal operational status (2 hour delay, horn muted)
- Faults and malfunctions (driver failure)
Essi’s proprietary Smart Field technology collects and transmits operational data from our BrightStar Class A 3nm-5nm lanterns and.05 or 2 nautical mile fog signals via an SSL secured interface.

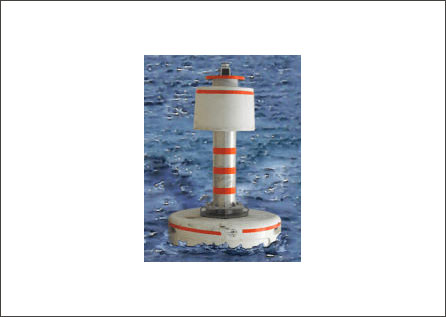

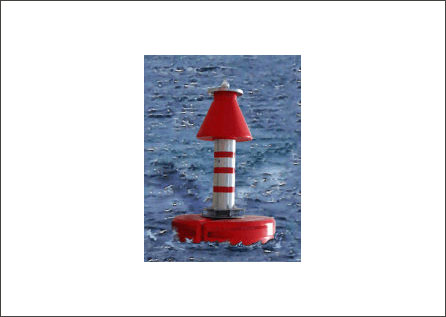

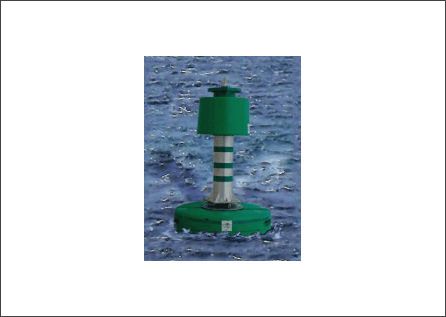

Smart Buoys
Ensure life-time buoyancy with Essi’s Smart Buoys. Equipped with GPS-enabled tracking and 24/7 monitoring capability as well as perimeter alarm warning, Smart Buoys utilize high density floats for one-third less weight than that of their steel counterparts.
APPLICATION
DESIGN
Configuration
